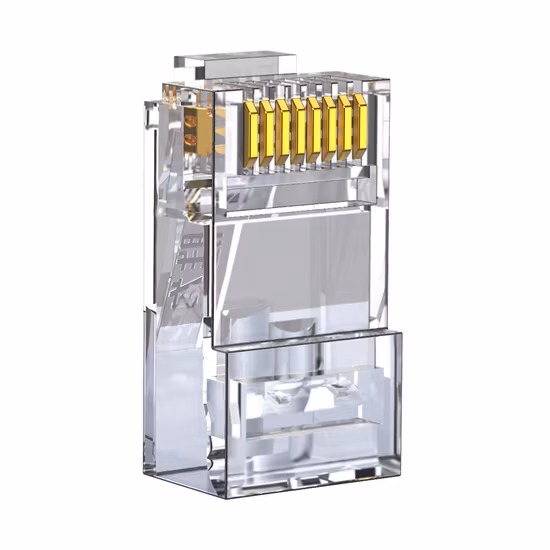

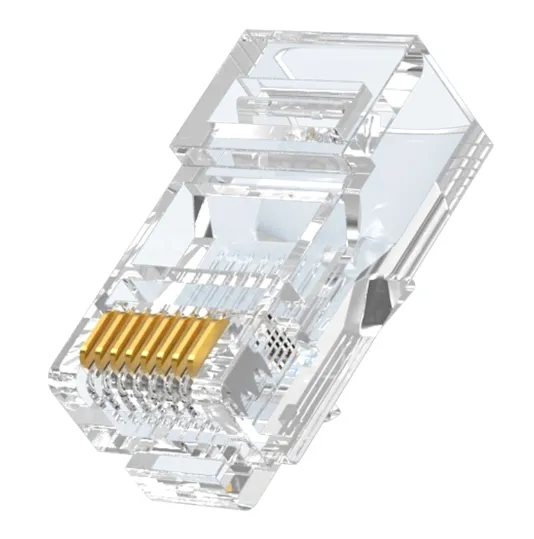

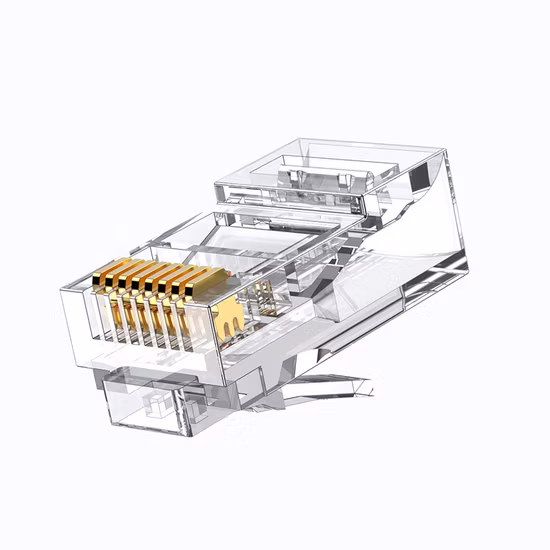

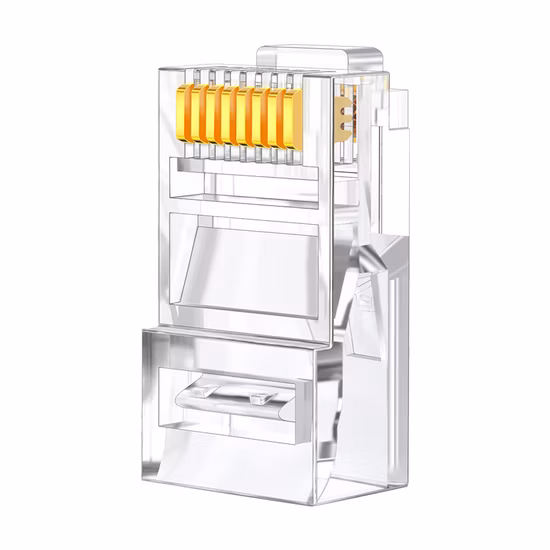

Unshielded /UTP Cat. 6 RJ45 Connector Modular Plug

Basic Info

Model NO.	SH2IJ650
Usage	Telephone, Computer, Workstation, Laptop
Type	Wired
Support Network	Ethernet
Information content	Data
Certification	CE, ISO, RoHS
Condition	New
Transport Package	Carton
Specification	Cat6
Trademark	SHENHENG
Origin	China
HS Code	8536909000
Production Capacity	20000PCS/Day

Product Description

high quality Cat.6 RJ45 8P8C UTP Modular Plugs are made by imported raw materials.

The structure of the plug hole is 4 + 4 (4 holes up and 4 holes down).

Comply with ISO/IEC 11801-1 & ANSI/TIA-568.2-D

Follow IEC 60603-7 series for RJ45 8-Way Connector

Meet FCC Standard

Different Gold Thickness Available (50u",30u",15u",6u",3u" , flash)

Mating Cycles: Up to 1200 Times

Suitable for 4PPoE (IEEE802.3bt / IEC60512-99-002) Applications

Cable Wire Gauge : 24AWG to 26AWG
• Part No. & Description
P88R5Z50V2IT: Cat.6 UTP modular plug designed for Cat.6 Solid & Stranded UTP lan cable.
• Quality Assurance
Each modular plug is inspected by AOI machine (Automatic Optic Inspection) to guarantee the quality.
• Application
Meet the stringent requirement of LAN and sustain a consistent impedance at high frequencies up to 250MHz.

•Electrical Characteristics

UL Application:	250 Valts AC max, AT AMP
Dielectric Withstanding Voltage:	500 Volts AC
Insulation Resistance:	100MΩ
Termination:	Resistance 20MΩ max after environmental testing

•Mechanical characteristics

Insertion Life:	750 mating cycles
Installation Temperature :	0/50ºC
Operation & Storage Temperature :	-20/60ºC
Cable to Plug Tensile Strength:	20pound(min)
Pulling Force:	10N(max)

•Component

Housing:	Polycarbonate, UL94V-2 or UL94V-0
Gold Plating:	50u", 30u", 15u", 6u", 3u" or flash
Contact Blade:	Copper Alloy
Contact:	Stradded or Solid Wire, from 24 AWG to 26AWG
Color:	Transparent or other color

• Different Color Available

FAQ1
Q:Can you accept customize or design for us? A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.2
Q:Is it possible to get a free sample ? A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
3
Q: Can you print our logo or company name in cable? A: Yes,we can print your logo or company name on products.4
Q:Does the product have quality inspection before loading? A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.5
Q:What is your working time? A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working days.6
Q:What are the certifications for your products? A: Our products have CE, RoHS, FCC, REACH certifications, so quality can be guaranteed. 2 years warranty for any product problem7
Q:How long does your delivery time take? A:In general, our delivery time is within 7-30days, and may be delayed if the demand is extremely large or special circumstances occur.
